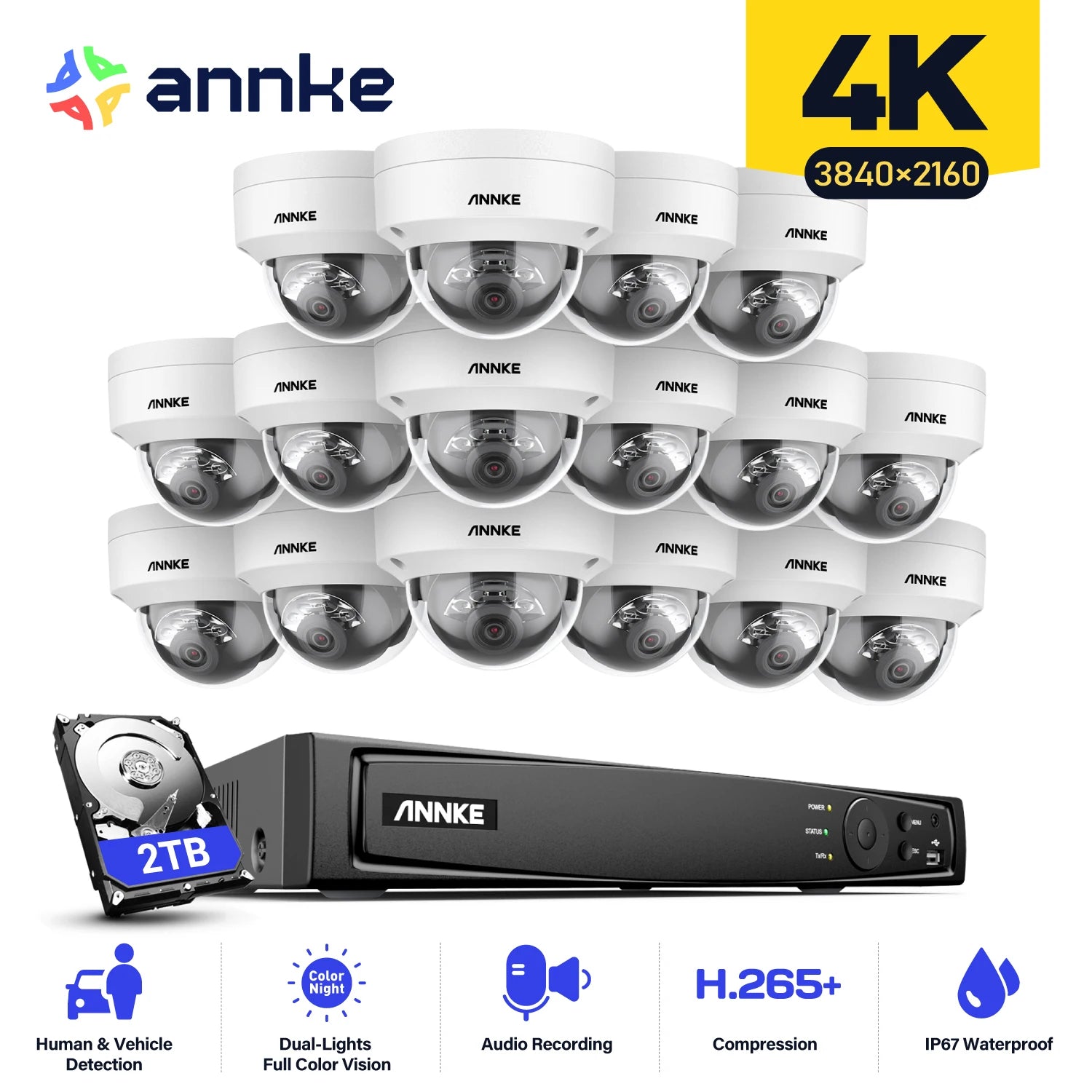

ANNKE 4K 8MP PoE NVR Surveillance System With 16 Smart Dual Light Cameras
ANNKE 4K 8MP PoE NVR Surveillance System With 16 Smart Dual Light Cameras
Couldn't load pickup availability
Experience ANNKE's crystal-clear 4K surveillance with smart dual-light cameras and a versatile NVR that adapts to your security needs.
- 16-channel PoE NVR with 4K playback — Connect up to 16 IP cameras via built-in PoE, view live footage at 4K, and back up on two SATA drives for reliable storage.
- Smart dual-light 4K cameras — Bright, color-rich video at night with 0.01 lux sensitivity, 120 dB WDR, 3D DNR, H.265+ efficiency, and a built-in microphone for real-time audio.
- Intelligent monitoring — Motion detection with human & vehicle analysis helps you prioritize alerts while ONVIF support and third-party camera compatibility expand your setup.
- Rugged, flexible design — IP67/IP66-rated weatherproof housing for indoor/outdoor use, on-board microSD up to 256 GB, NAS storage, and remote access on iPhone, iPad, and Android.
|
IP Camera |
||
|
Camera |
Image Sensor |
1/2.5" Progressive Scan CMOS |
|
Video Resolution |
50 Hz: 12.5 fps (3840 X 2160, 2560 X 1440, 1920 X 1080, 1280 X 720) |
|
|
Sub Stream |
50Hz: 25 fps (640 X 480, 640 X 360) |
|
|
Video Compression |
H.265+/H.265 |
|
|
Video Bitrate |
32 Kbps — 16 Mbps |
|
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
|
Audio Input/Output |
Built-in Microphone |
|
|
Lens |
2.8 mm |
|
|
Min. Illumination |
0.01 Lux@(F2.0, AGC On) |
|
|
Angle of View |
Horizontal FoV 102°, Vertical FoV 53°, Diagonal FoV 123° |
|
|
Number of Infrared LEDs |
2 pcs |
|
|
Night Vision Distance |
Up to 100 ft/30 m |
|
|
DNR |
3D DNR |
|
|
Wide Dynamic Range |
120 dB WDR |
|
|
Network Storage |
Local Storage & NAS (NFS, SMB/CIFS) |
|
|
ONVIF |
Support |
|
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
|
Ethernet |
RJ45 X1 (10 M/100 M) |
|
|
General |
Housing |
Aluminum Alloy for Main Body |
|
Color |
White |
|
|
Operating Power |
PoE (802.3af), 12 V DC ± 25% |
|
|
Storage |
Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB |
|
|
Hardware Reset |
Yes |
|
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
|
Indoor/Outdoor |
Indoor/Outdoor |
|
|
Weatherproof Rating |
IP67 & IK10 |
|
|
Dimension (L X W X H) |
Ø120 X 92.2 mm (4.7" X 3.6") |
|
|
Weight |
0.9 lb./420 g |
|
