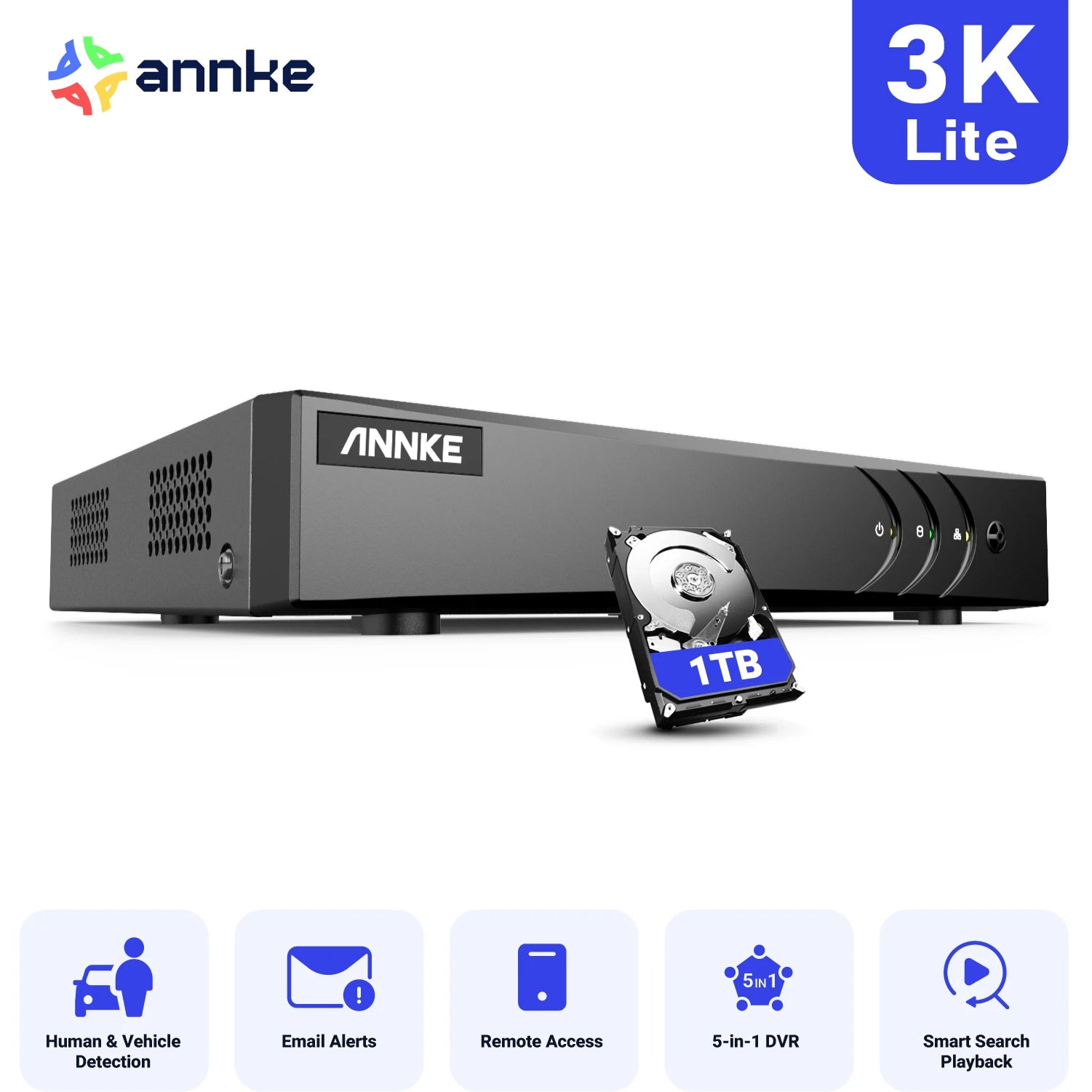

ANNKE 5MP Lite 8 Channel DVR 5IN1 TVI AHD CVI CVBS IP CCTV
ANNKE 5MP Lite 8 Channel DVR 5IN1 TVI AHD CVI CVBS IP CCTV
Couldn't load pickup availability
Experience 5MP clarity and 5-in-1 versatility in a compact ANNKE DVR that adapts to your security setup.
- You can connect up to 12 cameras: 8 analog HD plus 2 IP inputs, with TVI/AHD/CVI/CVBS and IPC compatibility to fit your layout.
- Enjoy efficient storage and crisp playback thanks to H.265 Pro+; up to 3K Lite live viewing and 3K Lite recording, IPC playback up to 6MP.
- Motion Detection 2.0 uses deep-learning style classification for humans and vehicles, reduces false alarms, and lets you search by object or event type.
- Access remotely on iPhone, iPad, and Android; supports up to 64 remote connections; stores on a 1 SATA HDD up to 10TB; network bandwidth up to 96 Mbps.
DVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265 Pro+ |
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
Video Output |

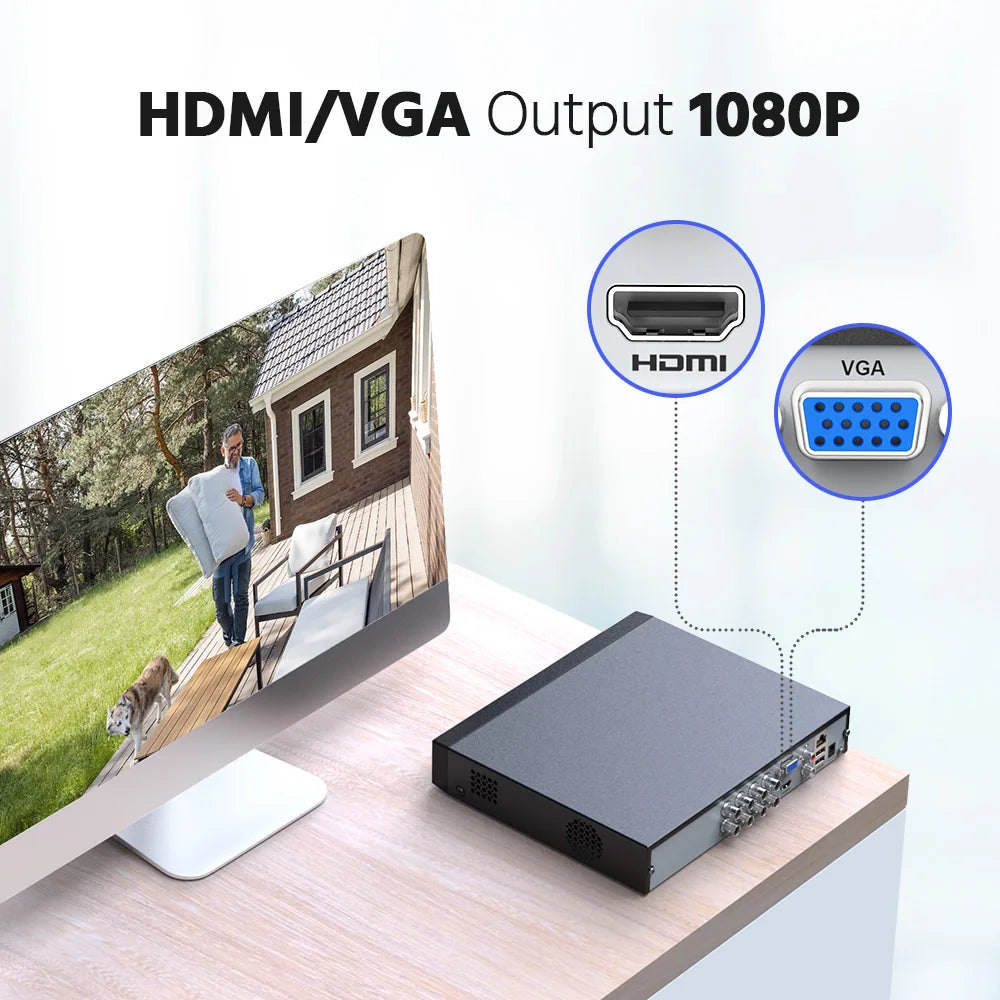

HDMI and VGA Up to 1080P |
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
Audio Output |
1-ch RCA |
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
IPC Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
8-ch |
|
Network Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Total Bandwidth |
96Mbps |
|
Remote Connection |
64 |
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
|
