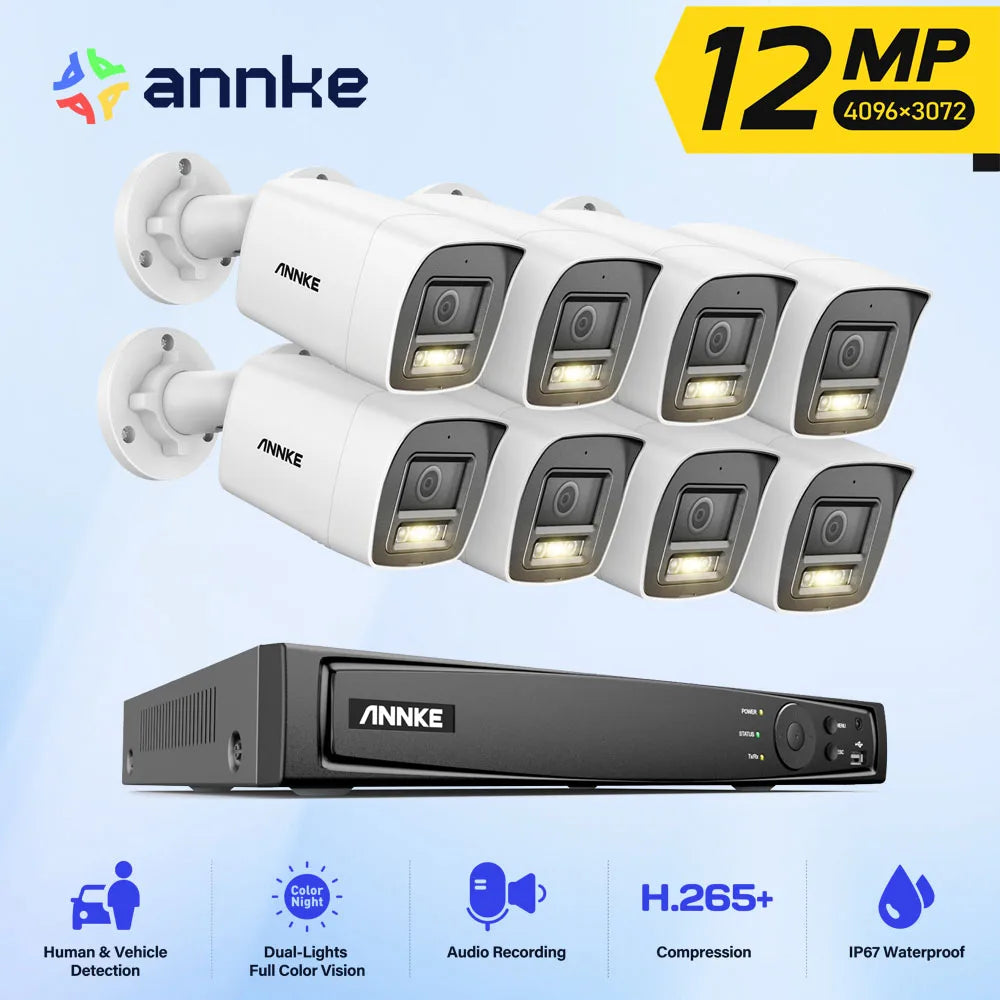

ANNKE 12MP Smart Dual Light PoE Camera Kit
ANNKE 12MP Smart Dual Light PoE Camera Kit
Couldn't load pickup availability
Experience crystal-clear security with the ANNKE 12MP Smart Dual Light PoE Camera Kit, engineered for wide-area coverage, vivid color night vision, and proactive alerts.
- 8-camera, 12 MP clarity: capture expansive scenes with a 2.8 mm lens, plus HDMI output up to 4K for sharp local viewing.
- Smart Motion Detection 2.0: detects people and vehicles to minimize false alarms, enhanced by 3D DNR and 120 dB WDR for clear footage in mixed lighting.
- Flexible power & storage: choose PoE or DC12V, on-board SD up to 512 GB, and an NVR that supports HDDs up to 8 TB for longer archives.
- Rugged, scalable, and accessible: IP67 cameras with built-in microphone and smart dual-light for color night vision; scalable to 8-channel IP cameras via built-in PoE inputs, with remote viewing via the Annke Vision app on iPhone/iPad/Android.
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
